Description

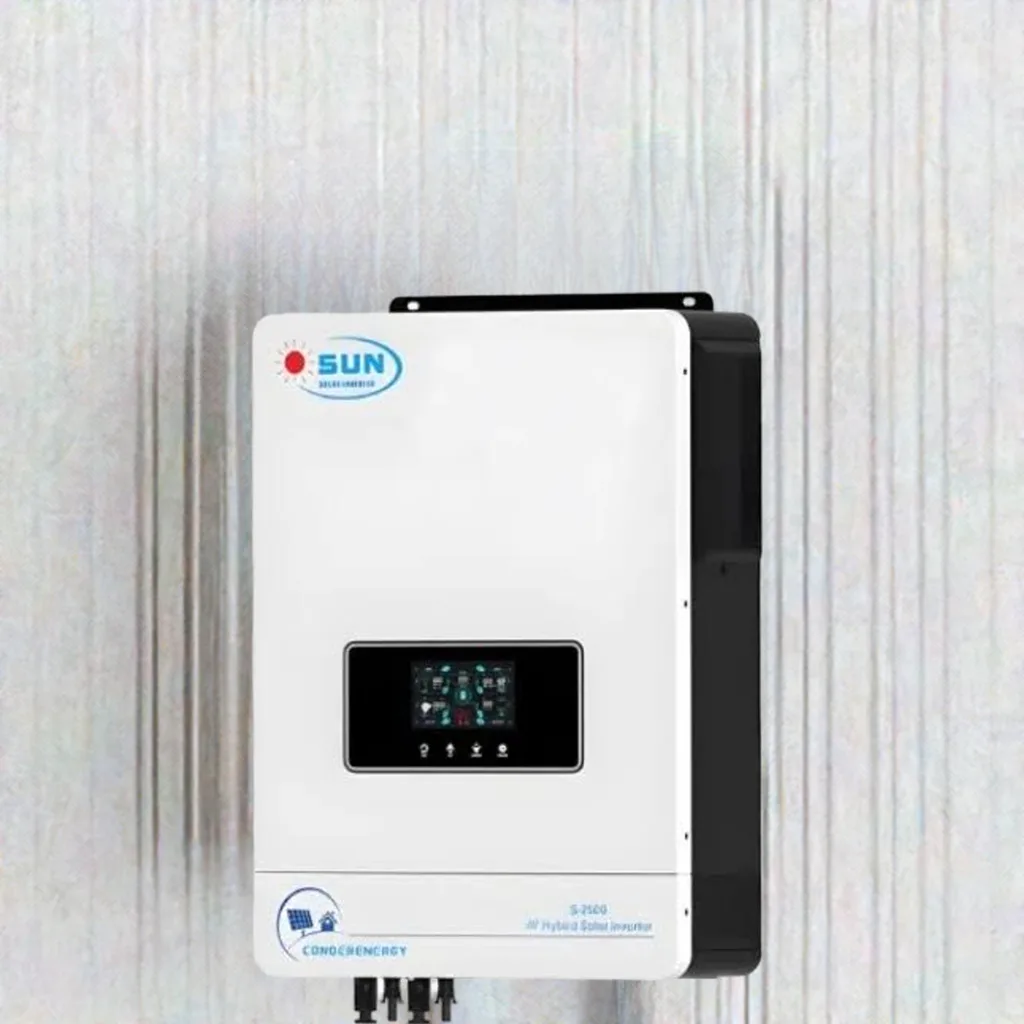

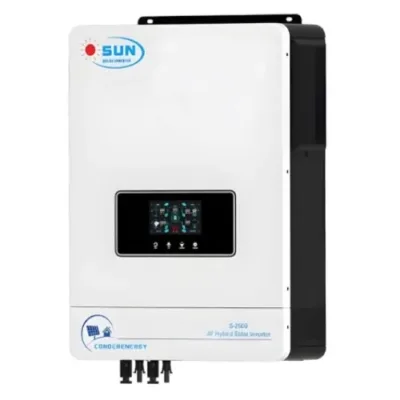

This Sun 10Kw Hybrid Inverter is a multi-function hybrid inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features of the Sun 10Kw Hybrid Inverter
Pure sine wave solar inverter (on/off Grid)
Output Power factor 1.0
WIFI & GPRS available for IOS and Android
The inverter can run without a battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 160A MPPT solar charger (for 8.2kw, 10.2kw), 140A (for 7.2kw)
High PV input voltage range (90~500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On Off-Grid Work Mode
Solar system connection
DC cable
Function buttons
Specifications
Model: S-2501
Phase: 1-phase
Maximum PV Input Power: 10200W
Rated input Power: 5400W+5400W
Maximum Solar Charging Current: 10200W
GRID-TIE OPERATION: 10200W/10200VA
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage: 360/500VDC
Start-up Voltage / Initial Feeding Voltage: 90VDC/120VDC
MPPT Voltage Range: 90-450VDC
Maximum Input Current: 1/23A
Maximum Solar charge current: 160A
On-Grid Home:
PV: 2/18A
Backup Battery: 2/18A
Dual AC Output: 10200w and 3400w (Second Load)
AC cable
Rated Output Power: 5400W+5400W
GRID-TIE OPERATION: 10200W/10200VA
Maximum Solar Charging Current: 160A
On-Grid Home: PV: 2/18A
1 Year warranty on the Sun 10Kw Hybrid Inverter 48v 10200w S-2501
